In neurostimulation systems, the electrode connector is a small but essential component. It provides the electrical connection between the stimulation device and the electrode pad, making connector selection an important consideration during product development.
For TENS and EMS device manufacturers, evaluating connector compatibility early can help reduce assembly issues, simplify product integration and support consistent manufacturing.
1. Connector Type and Dimensional Compatibility

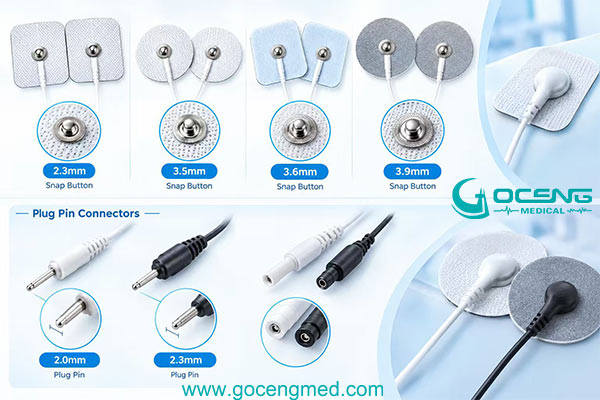

Neurostimulation electrode pads are available with different connector configurations, including snap connectors and pin-style connections. Even when two connectors appear similar, differences in dimensions or structural design may affect compatibility.
Before selecting an electrode pad, manufacturers should confirm the connector type, dimensions, mating interface and connection requirements of the intended device or lead wire.
Providing a physical sample or technical drawing during the initial evaluation can help clarify these requirements before mass production.
2. Connection Stability During Use
The connector should maintain a reliable electrical connection under the intended conditions of use. Repeated connection and disconnection, cable movement and normal handling can place mechanical stress on the connector interface.
Connector retention, attachment strength and electrical continuity are therefore relevant evaluation points. The appropriate verification methods and acceptance criteria should be established according to the product design and intended use.
3. Connector Placement and Electrode Construction
Connector placement can influence electrode assembly, handling and compatibility with the lead wire. Its position should be considered alongside electrode dimensions, backing material, conductive layers and hydrogel coverage.
For customized electrode pads, these design elements need to work together rather than being evaluated independently. Early coordination between the electrode supplier and device manufacturer can help identify potential interference or assembly challenges before tooling and production.
4. Verification Before Mass Production
Before approving a new electrode configuration, manufacturers should verify that the pad connects correctly to the intended device or lead wire.
Depending on the product specifications, the evaluation may include dimensional checks, connection and disconnection testing, connector attachment assessment and electrical continuity testing. Compatibility should be confirmed using the actual mating components wherever possible.
Documenting the approved connector specifications and inspection criteria also helps maintain consistency when production moves from prototype samples to larger batches.
